Plastic Injection
Special Announcement: We are working with Polyone and Laird Tech to develop plastic materials consist of Stainless Steel or Carbon fibers for compoments which can replace die casting parts in an EMI shielding applications. Contact us for more info and test results.
1. Material
Most Specified Plastic Material
| Material |
Properties |
Application |
| ABS |
lGood Impelling Strength lGood Mechanical Properties lGood Heat Resistance ,Oil Proof lChemical Durability lEasy To Plating And Machining |
l General Structure parts l Wear Resistance And Transmission Parts l Body Of Automobile |
| PP |
l Light, Tough, Hard To Stretching And Compress. l Good Mechanical properties In High Temperature ( Above 100℃~150 ℃ ） l Cold Brittleness, Bad wear Resistance |
l General Structure parts l Anticorrosion Equipments l Heating electric appliances |
| PC |
l Good Impact Ductility And Creep Resistance l Good Mechanical Properties In Lower Temperature |
l Gears, Worm Wheel, Rack, Bearing, Screw Cap, Shell, lamp-chimney ,Cover Board, Washer, container. |
| PA66 |
lGood Fatigue Strength And Toughness l Good Heat Resistance and Wear Resistance l Bad Dimension Stability |
l Medium Loading parts l Transmission Parts lWorking Temperature Below 100℃。 |
Other Plastic Material We Use
| Abbreviation |
Full Name |
Abbreviation |
Full Name |
| HDPE |
High density ploy ethylene |
PET |
Polyethylene terephthalate |
| HIPS |
High impact polystyrene |
PPO |
Polyphenylene oxide-usually modified |
| HPVC |
Hard Polyvinyl chloride |
PPS+40%GF |
Polyphenylene sulphide |
| LDPE |
Low Density polyethylene |
PS |
Polystyrene |
| PA6 |
Polyamide 6 or nylon 6 |
PU |
Hard polyurethane elastomer |
| PBT |
Polybutylene terephthalate |
POM |
Polyoxymethylene or Acetal or Polyformaldehyde |
| PC+30%GF |
Polycarbonate |
AS |
Acrylonitri,%-styrene copolymer |
| TPE |
Thermoplastic elastomer rubber |
|
|

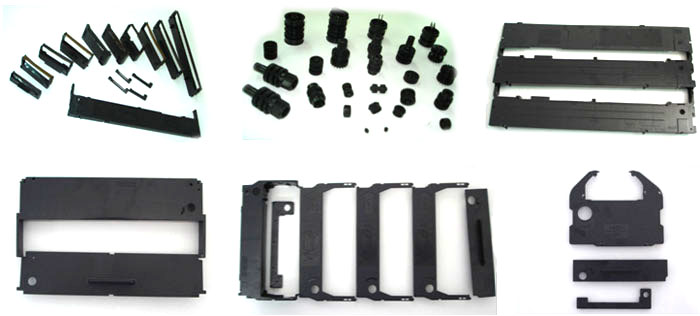

Precision Plastic Gear, Roller, Insert-mould and Over-mould Components. Developing EMI Shielding and Conductive Plastics for the Electronics Industry
 |
